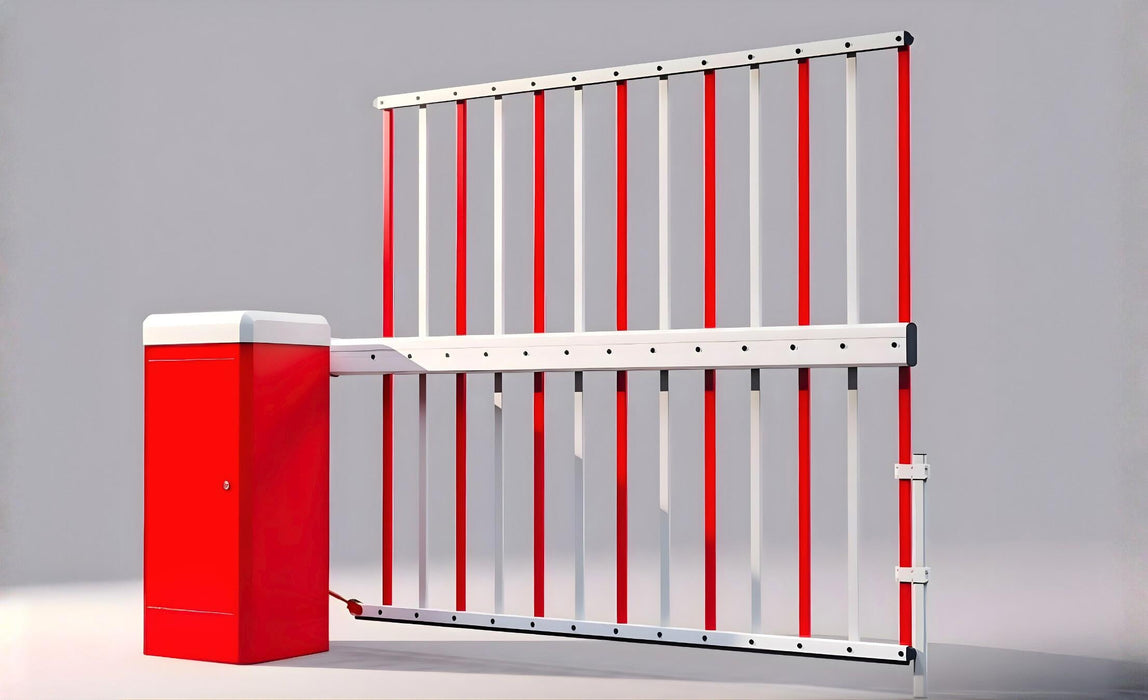

Heavy Duty Automatic Barrier Hi-Bar
Free delivery and VAT included
Heavy Duty High Bar Security Barrier System
The HI-BAR Heavy Duty Automatic Barrier is designed for commercial and industrial
entrances that require increased perimeter control, visible access restriction, and reliable
automated operation in high-traffic environments.
Built around a DC brushless motor with spring-assisted operation, this heavy-duty security
barrier system is engineered for continuous daily use across managed access points,
logistics facilities, commercial compounds and restricted vehicle entrances.
The extended HI-BAR upper frame creates a stronger visual barrier than standard arm
barriers, making it suitable for sites requiring additional controlled access measures and
clearer entry management.
Available in boom lengths up to 6000mm, the system combines robust construction with
dependable automated performance for demanding access control applications.
Heavy Duty Barrier Features
This heavy duty automatic barrier includes:
● DC brushless motor
● Spring-assisted operation
● Continuous 100% duty cycle
● Zinc-plated powder-coated cabinet
● Red cabinet with white lid finish
● Integrated red/green LED lighting
● Safety rubber buffer
● Pogo tip support
● Receiver board
● 2 remote fobs
● Anchor bolts
● HI-BAR upper barrier frame design
Designed for frequent operation, the system delivers dependable performance for industrial
barrier installation and commercial security barrier applications.
Security Barrier Installation Applications
This security barrier gate is suitable for:
● Industrial estates
● Commercial compounds
● Logistics depots
● Warehouses
● Business parks
● Distribution centres
● Managed vehicle entrances
● Restricted commercial access roads
The system can operate as a standalone security arm barrier or integrate with wider security
barrier systems including ANPR, keypad entry, GSM intercoms and remote access control
systems.
While the HI-BAR configuration provides a more substantial physical and visual barrier setup
versus standard arm barriers, sites requiring certified hostile vehicle mitigation barrier or
anti-ram vehicle barrier systems should contact us directly to discuss specialist rated
solutions.
Available HI-BAR Barrier Sizes
The HI-BAR Heavy Duty Automatic Barrier is available in the following configurations:
● 4000mm HI-BAR barrier
● 5000mm HI-BAR barrier
● 6000mm HI-BAR barrier
For standard commercial entrance control, view our Commercial Automatic Barrier Gate.
For the equivalent heavy-duty barrier without the HI-BAR upper frame, view our Industrial
Security Barrier Gate.
Need installation for one of our gates
